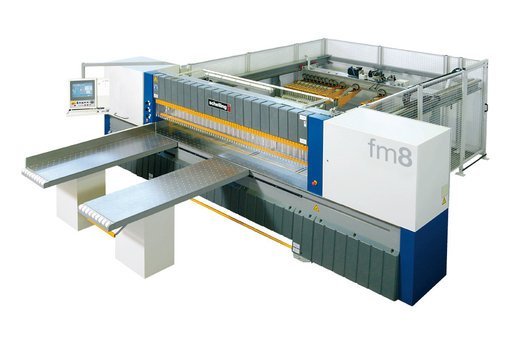

New Schelling fm8

Feeder travel speed:
forward0 – 25 m/min0 – 82 ft/min
back0 – 32 m/min0 – 104 ft/min
Saw travel speed:
forward0 – 80 m/min0 – 262 ft/min
back0 – 80 m/min0 – 262 ft/min



Main saw motor power:
 34 kW45 HP



Main saw blade:
Diameter max.520 mm20.5“
Projection max.165 mm6.5“
Max. Cutting heigth152 mm



Cutting length:
fm 8 3303,300 mm130"

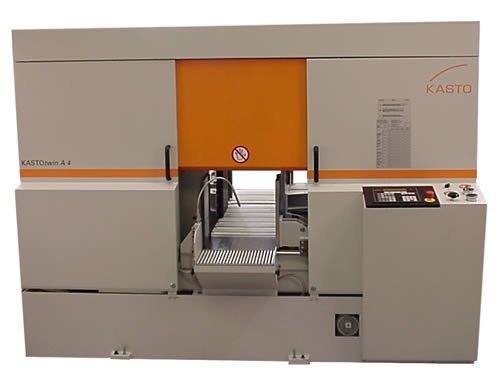

Kasto Twin A4

Horizontal band saw:
Max. Diameter - RoundØ 400mm
Max. Diameter - Flat400 x 400mm
Shortest cut-off length6mm
Smallest slicable DiameterØ10mm



Saw travel speed
forward20 - 110 m/min



Main saw motor power:
4 kW

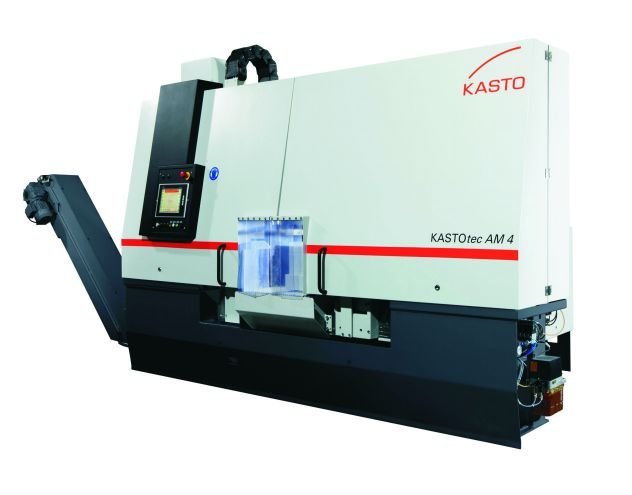

KASTOtec AM 4

Horizontal band saw:
Max. Diameter - RoundØ 400mm
Max. Diameter - Flat400 x 400mm
Shortest cut-off length6mm
Smallest slicable DiameterØ10mm



Saw travel speed
forward120 - 1.200 m/min



Main saw motor power:
15 kW
